An established concept with new technology: ball mills have been the mills of choice for decades for processing high-grade mineral powders. Regardless of whether the material displays Mohs hardness values of over 4 or is soft such as limestone or talc, Super Orion ball mills ensure low-wear and cost-effective processing. Over the years, we have continuously refined what started out as a simple ball mill for the industrial minerals sector to a high-tech machine for the mineral powder industry. The well proven grinding principle and the unmatched robustness of the machine are two features which have not changed, and today, there are three different standard designs available. Each of the three designs can be steel-plated or, if iron contamination is an issue, lined with silex or aluminium oxide.

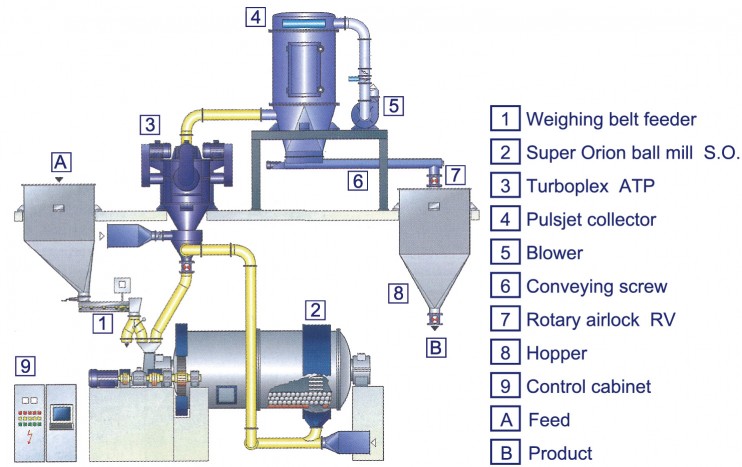

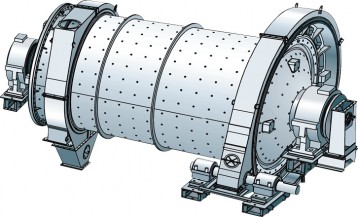

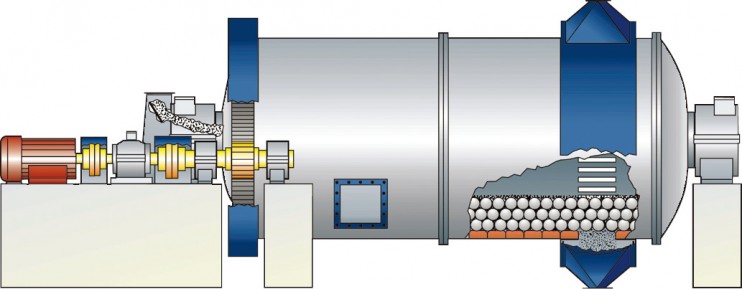

The classic standard design, which has proved itself in operation throughout the world for decades. Both the design and efficiency have been continually improved to pay tribute to new technology and market requirements.

• Cast side plates bolted to a welded grinding drum.
• Integrated manhole.

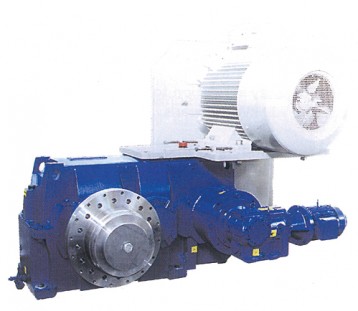

• Drive via ring and pinion gear with automatically controlled tooth lubrication, back gearing with couplings and high-performance gear unit.
• Product discharge via adjustable slots located around the periphery of the drum. Two-part discharge housing with top venting connection and inspection cover.
• Bearing unit: grease-lubricated anti-friction bearings, central lubrication system. Friction bearings also possible if required with permanent oil-recirculation lubrication and temperature control.

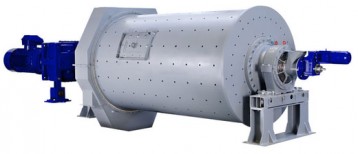

• Grinding drum completely in welded design.

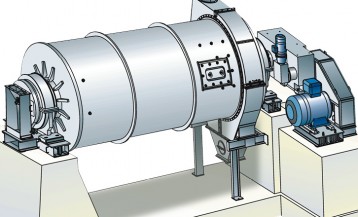

• Direct drive via trunnion with top-mounted gear unit. Motor connected to gear unit via a V-belt drive.
• Bearing unit in enclosed, grease-lubricated anti-friction bearings, central lubrication system.
• Product discharge via slots located around the periphery of the grinding drum.

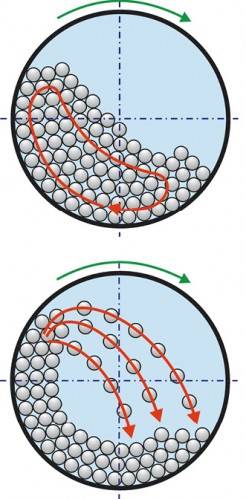

Ball mills are usually operated at 75% of the critical speed, i.e. in the fringe area between cascading and free-fall. With a specially designed frequency converter, it is even possible to operate a heavy ball mill at variable speed. And if the S.O.-SF is to be used for grinding ultrafine products or if it is planned to change the product frequently, operation with a frequency converter is particularly advantageous.

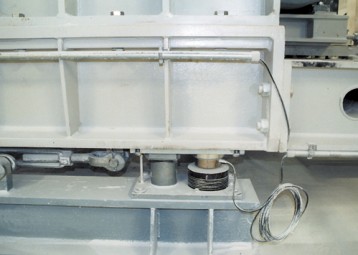

High quality application demands exact measurement of the amount of product in the mill. Because of this, an optional accessory offered for our ball mills is the load cell system which permits high-precision control of the product level. The complete ball mill is bedded on a steel or concrete frame designed to rest on a defined number of load cells. The load cells are integrated into a control unit and determine the total weight of mill, grinding media and product. The addition of virgin feed can be controlled with such precision that the mill always operates at optimum load. This means reliable prevention of no-load operation or overfilling, and mill operation is exceedingly cost-effective.
