Gear Pelletizer GCS GMS
Summary
The Gear Pelletizer is the machine to make uniform cylindrical pellets by adding a small amount of binder to improve the handling performance.
Principle
Counter-rotating gear type toothed rolls, pull product in and press it through nozzle bores, which are situated between the teeth. In these channels, material is densified into cylinder shaped pellets and emerges on the inside of the rolls. The scraper inside the roll cuts the extruded material for suitable size as product.

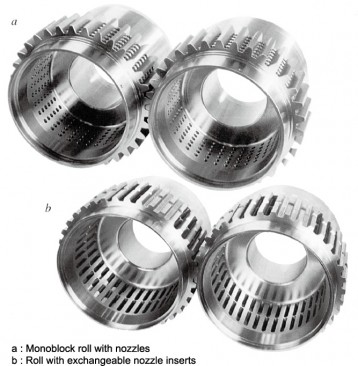

Fig.1 Gear roll

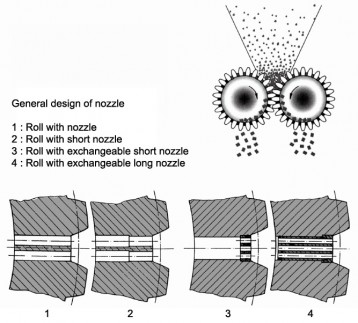

Fig.2 Cross sectional view of 4 type nozzles
Features

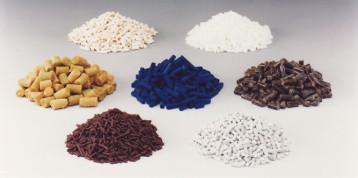

Fig.3 Granule products
- Can be produced cylindrical pellets controlled hardness
- Easy to disassemble and clean of gear roll
- Can be heat and cool the feed
- Can be decrease binder volume
Applications

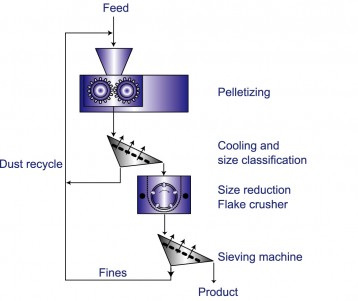

Fig.4 Flow
Suitable for pharmaceutical, agricultural chemical, food, synthetic resin, ceramics, fertilizer, animal feed, etc.
Feel free to contact us. if you have any questions or concerns.
