FINETRON FT-N
Summary

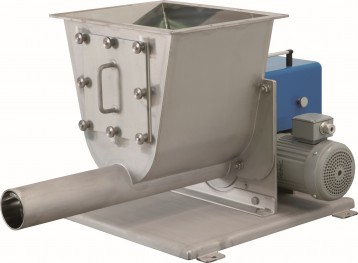

The Finetron FT-N is a feeder with a screw and oscillating agitator. It can be used in a wide range of applications such as to feed adhesive materials or materials with small bulk densities into mills or classifiers. It can also be used to feed small amounts of additives to mixers. The Finetron FT-N is an improved version of the Finetron FT with a design that is easier to clean and disassemble.
(FINETRON is a registered trademark of HOSOKAWA MICRON CORPORATION in Japan)
Principle

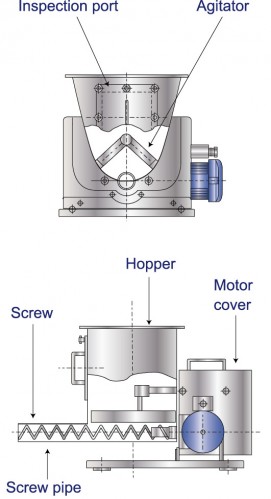

Fig.1 Schematic structure
The FT-N consists of a main body and hopper. Inside the hopper is an agitator that oscillates when the screw is turning preventing the material from bridging. This stabilizes the properties of the material entering the screw, leading to stable feeding.
The hopper, agitator and screw can be removed from the body easily for cleaning. The drive components are in the main body and are separated from the hopper with oil seals. The screw uses a spiral design without a center shaft. The screw speed is adjustable with an inverter between 15 to 115 rpm. For material with high flowability, an optional full blade screw is available.
Features
- Stable and accurate feeding
- Can feed materials that were difficult to feed with traditional screw feeders
- A range of models with a wide feeding range
- A single drive unit can adapt to FT10N - FT-25N, FT40N - 100N, respectively.
- Can be used if loss in weight mode with an optional scale
- Easy to clean and disassemble
Applications
Used as a feeder in a wide range of applications in the chemical, food and pharmaceutical industries. When a higher level of accuracy is required, the optional scale can be used for loss in weight feeding.

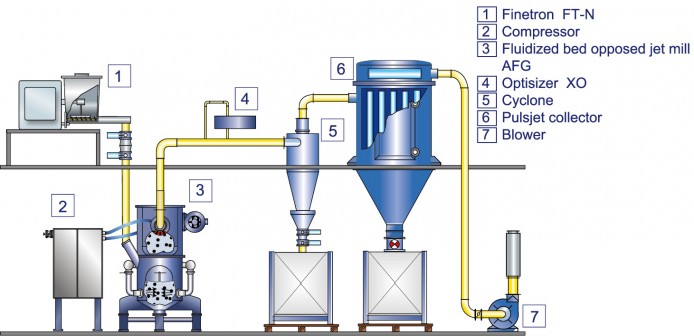

Fig.2 Flow
Feel free to contact us. if you have any questions or concerns.
