Fluidized Bed Opposed Jet Mills TFG

Fluidized Bed Opposed Jet Mills TFG

Summary

Toner is a special product because it places extremely high demands on the particle size distribution, which must be particularly narrow and ever finer. Besides this, the resin blends are being formulated with ever lower melting points to increase the speed of the laser printer. Especially important is the good accessibility for cleaning to minimize the downtime during a color change.

Features

Thanks to its high precision of cut, the TFG classifying wheel with its support wheel makes an exact top-size limitation and a reduction of the fines portion possible.

A hydraulic mechanism permits the classifier head to be raised and then swung off to the side through 180°, thus affording good access for cleaning and maintenance procedures.

Specifications:

Stainless steel, polished finish
Pressure-shock-proof to 1.1MPa overpressure
Load cells
Megajet nozzles
Classifying wheel with wear protection

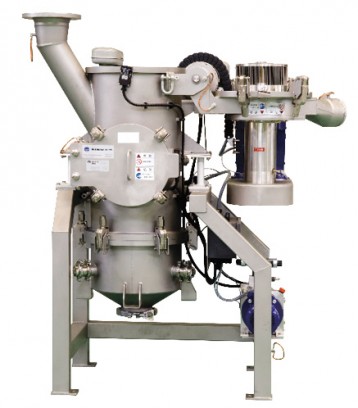

Fig.1 400TFG in open position

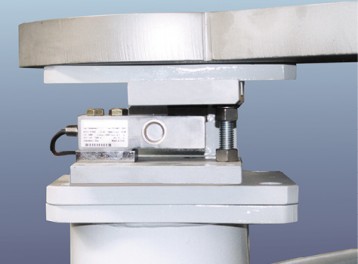

Fig.2 Load cell

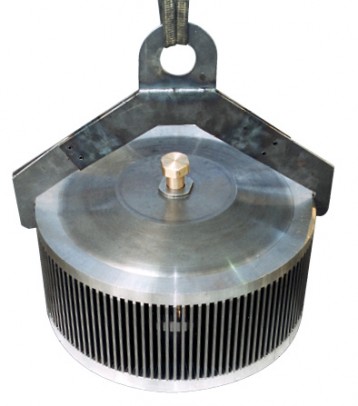

Fig.3 TSP classifying wheel

Related equipments

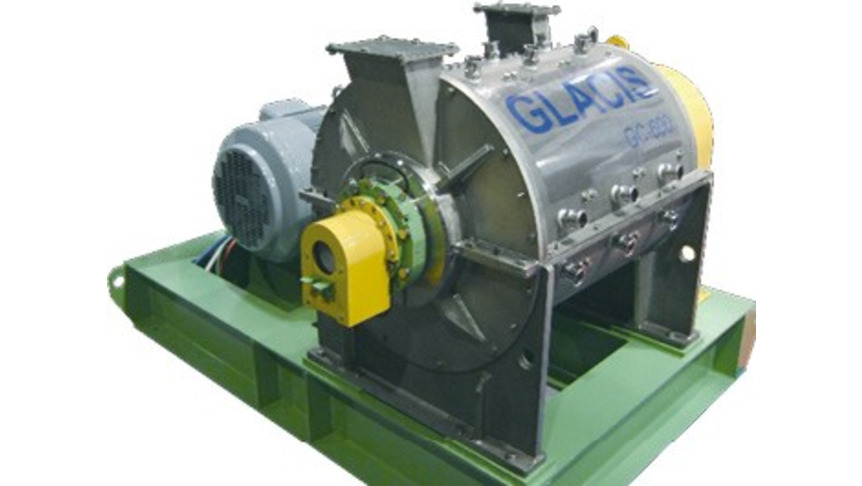

HOSOKAWA / MICRON GLACIS GC The Glacis is a high performance cooling type fine grinding mechanical mill that can grind heat-sensitive materials comparable to product sizes produced by jet mills. The Glacis has energy consumption levels lower than jet mills. In conventional systems, the jet mill was mainly used to grind toner while preventing the materials from melting due to the heat generated during grinding. While the jet mill is an effective from of grinding, lately mechanical grinding processes are being considered once again due to the high-energy consumption and low product yield of the jet mill. To meet these user needs, in 2011, Hosokawa succeeded in developing a high performance cooling type fine grinding mechanical mill. Large production scale units have already been sold, with confirmation of high quality products being produced. From the unique features of being able to ultra-fine grind products while having a high performance cooling mechanism, the Glacis is a well-suited machine for grinding toners, tea leaves, plastics, and other heat-sensitive materials. (GLACIS is a registered trademark of HOSOKAWA MICRON CORPORATION in Japan)
