Summary

The Turboplex classifier is the classic all-rounder, offers the widest range of applications, and is available as a single-wheel or multi-wheel classifier. The design is tailored to suit the application.

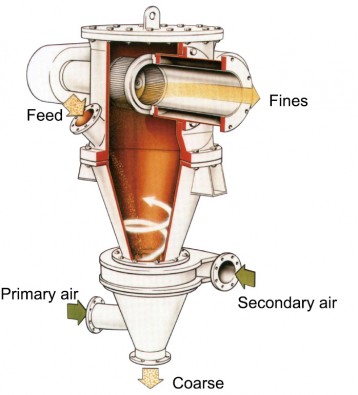

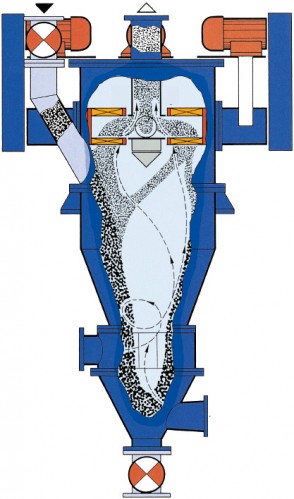

After entering the machine, the classifying air flows through the classifying wheel in centripetal direction, extracts the fines and conveys them to the fines discharge. The coarse material rejected by the classifying wheel exits the machine through the coarse discharge. The air routing shown in the schematic is simplified and doesn't show that before the coarse material exits the classifier, it is rinsed again intensively by air to remove the remaining fines. This results in an extremely clean coarse fraction.

The product is fed either by gravity from the side via a rotary valve or entrained in the classifying air. The product fineness is controlled as a function of the classifying wheel speed using a frequency converter.

Wear Protection

The materials used and the type of wear protection is customized for the specific application.

• Housing:

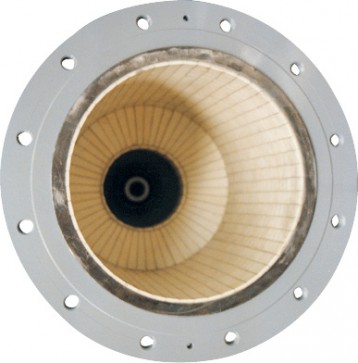

  PU or ceramic wear protection
• Classifying wheels:

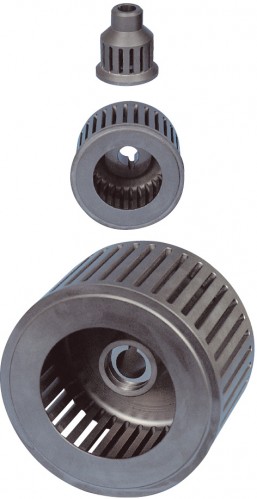

  Al₂O₃ in monobloc ceramic for machine sizes ATP 50, 100, 140, 200, 315
• SiC for machine sizes 100 and 200
• Steel wheel with tungsten carbide coating

Designs

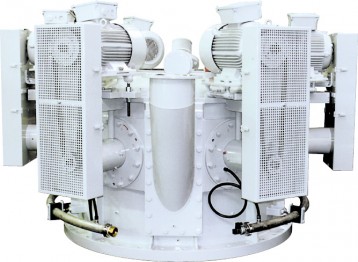

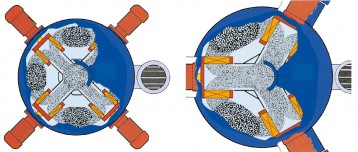

• ATP singe- / multi-wheel classifier
• Mild steel / stainless steel
• Pressureless / pressure-shock-proof to 10 bar (g)
• Wear protection
• Enlarged fines discharge

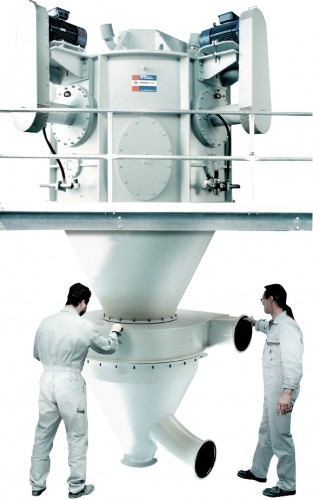

• Classifier head can be hinged open
• Pneumatic feed with main classifying air optional (in-line mode)

There is hardly another type of classifier that is so well adapted to real-life demands as the Turboplex ultrafine classifier:

• Horizontal classifying wheel
• Robust design
• Ultrahigh fineness values
• Sharp top-size limitation
• Stable operation even at fluctuating feed rates
• Universal in use
• Sophisticated technology
• Easy classifying wheel exchange
• Low maintenance costs

The high manufacturing quality enables extremely tight tolerances to be observed. For the user, this means that oversized particles are avoided, because it is possible to set a very narrow rinsing gap. The compliance with ultra-precise tolerances in the case of the bearing unit contributes towards a long service life.

In a grinding-classifying circuit, the amount of energy needed for the classification increases with increasing end-product fineness. This fact gave rise to the demand for a low-energy classifier that was still capable of achieving fineness values in the range d₅₀ < 1 µm. The "New Generation" Turboplex (ATP-NG) classifier operates in accordance with a completely new classifying principle. The advantages of this new classifier generation are especially noticeable when used in the submicron range: low energy consumption at high yield.

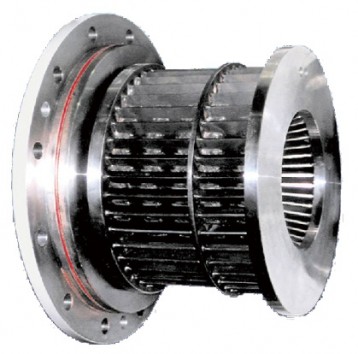

Another plus point is the ease with which existing ATP classifiers can be upgraded with the new classifying wheels. With the new NG wheels, it is possible to reduce the pressure drop by approx. 60% when compared with the standard ATP classifying wheel.

With the new classifier generation, end-fineness values are possible that were previously inconceivable with production-scale systems.

In the manufacturing of ultrafine limestone and talc filler it is the fineness of the classification that is all-important, other applications however target a coarse end product with a particle size distribution that is as steep as possible, here, too, the new generation of the ATP classifier has proved successful in the practical operation.

• 30% -- 50% less energy requirement in comparison with the standard Turboplex classifier.
• Classification down to d₅₀ = 0.5 µm
• High fines yield
• Tungsten carbide wear protection
• Easy upgrade -- conversion of existing machines to ATP-NG design can be achieved by simply exchanging the classifying wheel and drive unit.
